Description

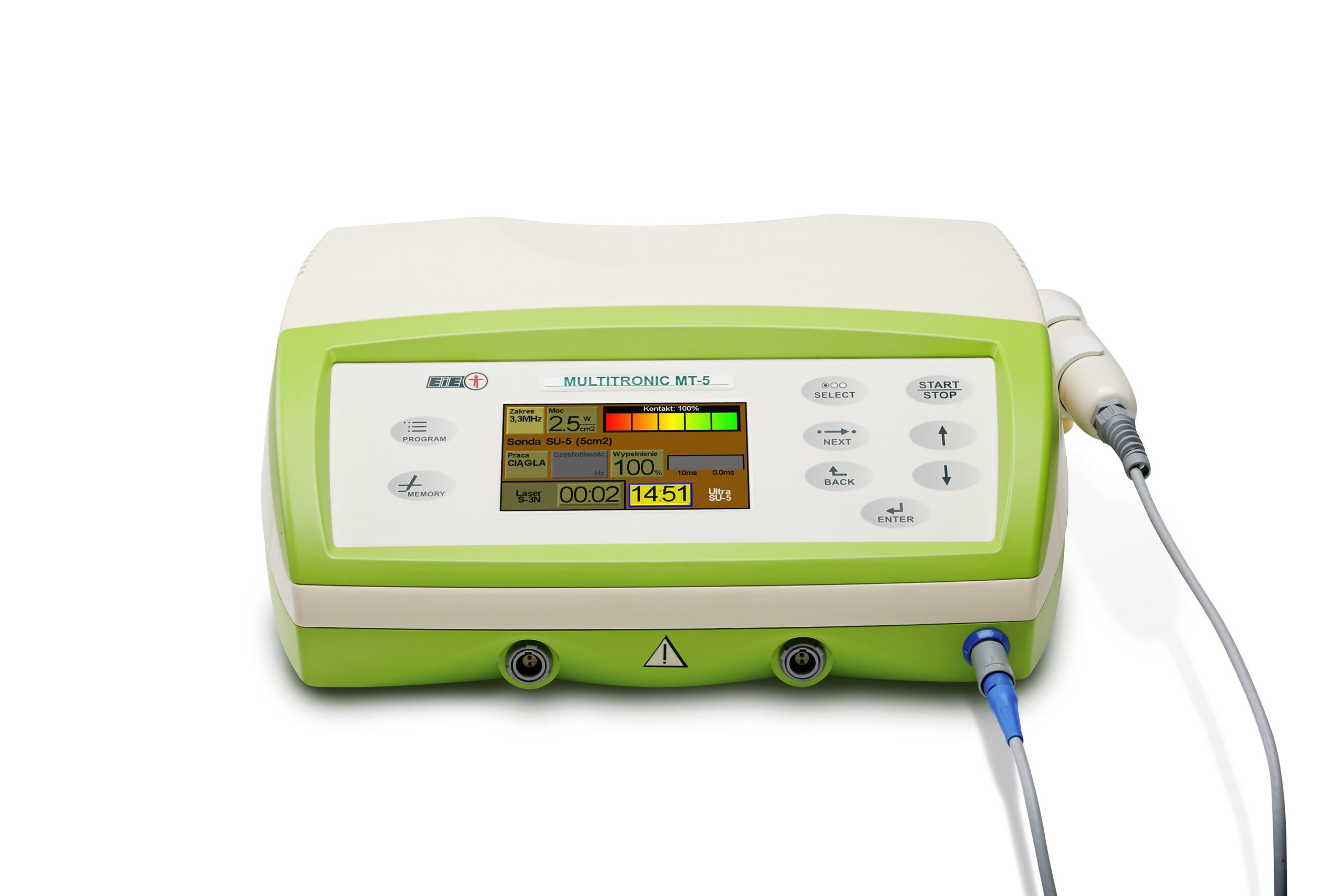

Multitronic MT-5 combines two-channel electrotherapy with ultrasound therapy in one unit, so both can be given in a single session without moving the patient.
Key features
- two treatments can be carried out at the same time
- combination therapy treatments possible
- 4,3” colour graphic touch screen
- operated by buttons or touch screen
- ergonomic, lightweight treatment probes
- modern design of the unit and probes
- preset treatment programmes for common conditions
- custom programmes saved by the therapist via an on-screen keyboard
- every treatment parameter adjustable individually
- fan control that minimises noise and power consumption
- counters for treatment time and number of treatments performed
- can be used as a portable unit
Standard equipment
- user manual
- complete set of electrotherapy accessories
- E-S 50 flat silicone electrode with P-50 viscose pad (4 pcs)
- E-A 75 flat aluminium electrode with P-75 viscose pad (4 pcs)
- K-2L electrode connection cable (2 pcs)
- O-R1 strap, 50 x 500 mm (2 pcs)
- O-R2 strap, 50 x 800 mm (2 pcs)
- mains cable
- fuse T-0.315AL, 250 V (2 pcs)
- ultrasound gel 0,5 l (when an ultrasound head is ordered with the unit)
Optional equipment
- electrotherapy accessories
- ultrasound heads
- carrying bag
- trolleys for the units
Technical data
- Power supply: single-phase mains ~230 V ±10%, 50 Hz, 70 VA
- Electrical protection class: class I, type BF
- Ambient temperature: 10°C – 40°C
- Relative humidity: up to 85%
- Dimensions: 335 x 270 x 125 mm
- Control unit weight: 3,4 kg
The unit ships with a green housing as standard. A different colour must be specified when ordering; grey-silver is available at no extra charge.
