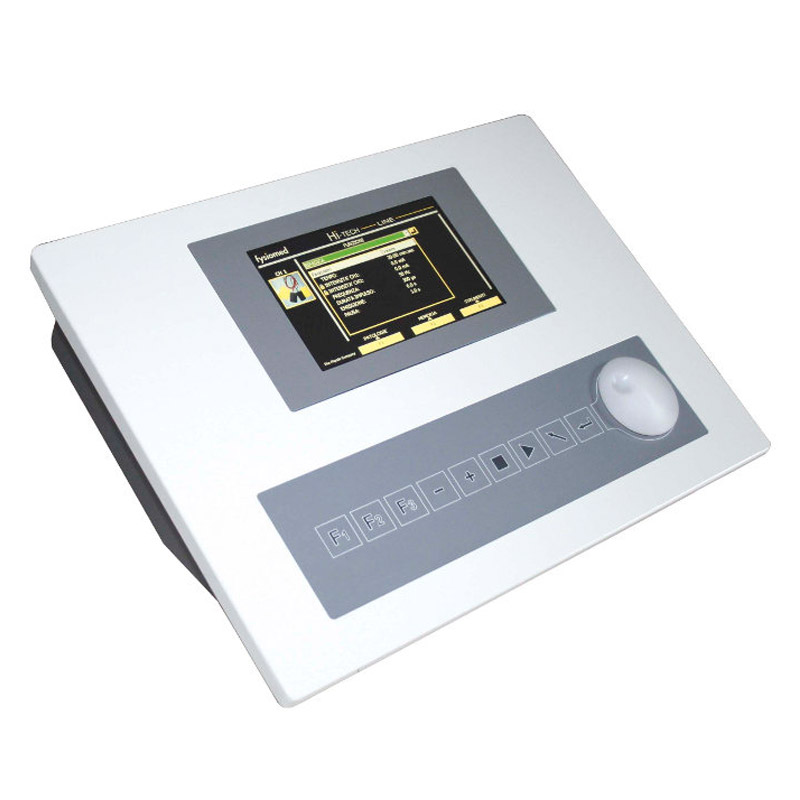

Multistim HT VAC – 20610

The new Multistim HT VAC is an advanced and complete universal electrotherapy device made for professional users, with 2 independent patient circuits and built-in vacuum module.

Description

[et_pb_section bb_built=”1″][et_pb_row][et_pb_column type=”4_4″][et_pb_text]

The new Multistim HT VAC is an advanced and complete universal electrotherapy device made for professional users, with 2 independent patient circuits and built-in vacuum module.

Low frequency currents:
biphasic, Tens, diadynamic (50-100Hz – CP, LP, 50 Hz and 100 Hz interrupted), rectangular, triangular, exponential, galvanic, galvanic interrupted, ionophoresis, faradic (triangular, rectangular, neodyn), Trabert, ultra-reiz

Medium frequency currents:
IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF stimulation, isodynamic, Kotz

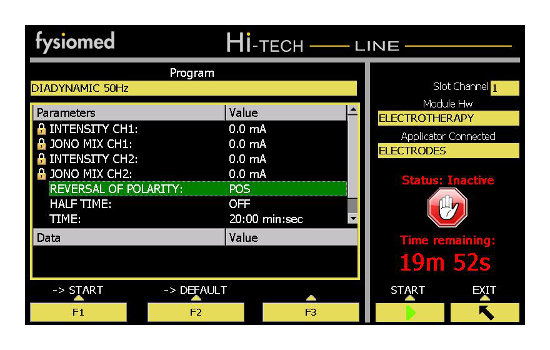

All the functions are visualized on a large color LCD. In addition to the usual and traditional keys and buttons, it is possible to adjust every parameter on the touchscreen.

The versatile Windows CE operating system ensures possible upgrading.

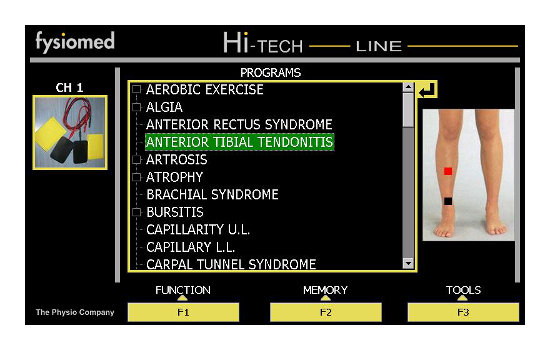

A wide range of preset protocols with body maps is available for setting most important therapies into the fields of physical therapy, sports medicine, orthopedics, vascular and aesthetic medicine.

After a pathology is chosen, the screen will show the body parts to be treated and the unit will suggest the parameter values to set.

Free memories for entering customized protocols.



Technical data
  • 2 independent patient circuits
  • max. intensity:
    • low frequency currents: 76,5 mA (153 mAp)
    • medium frequency currents: 127 mA (153 mAp)
  • frequency from 2,5 to 20 kHz

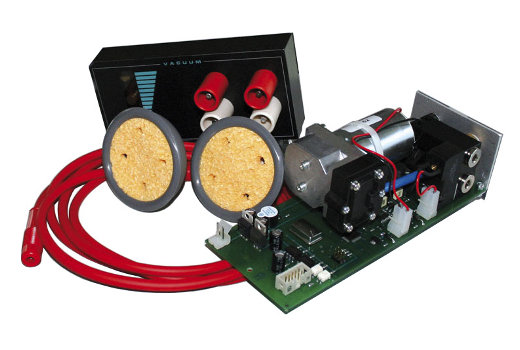

  • vacuum module:
    • continuous or pulsed mode
    • double output allowing bipolar or quadripolar application
    • pressure: 0,6 bar
  • color touchscreen 400×800 pixels
  • power supply: 115-230 V~ 50/60 Hz
  • consumed power: 80 VA
  • dimensions: 40 x 30 x 23 cm
  • safety class: class I type B according to IEC 601-1
  • Directive EEC 93/42: IIa
  • marking: CE 1639



Accessories

Standard Accessories
37702 – chamex cover nr. 2
37115 – SCR flexible electrode nr. 2 – 4x
37726 – Fysiomed elasto-strap – 90 cm – 2x
37731 – black patient cable – 2x
37732 – red patient cable – 2x
37736 – power cable
37737 – motor point electrode
37787 – vacuum electrode Ø 6 cm – 4x
37789 – moist pad Ø 6 cm – 4x
37792 – red vacuum cable – 2x
37793 – white vacuum cable – 2x

Optional Accessories
20880 – trolley HT Line

[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section]
