Description

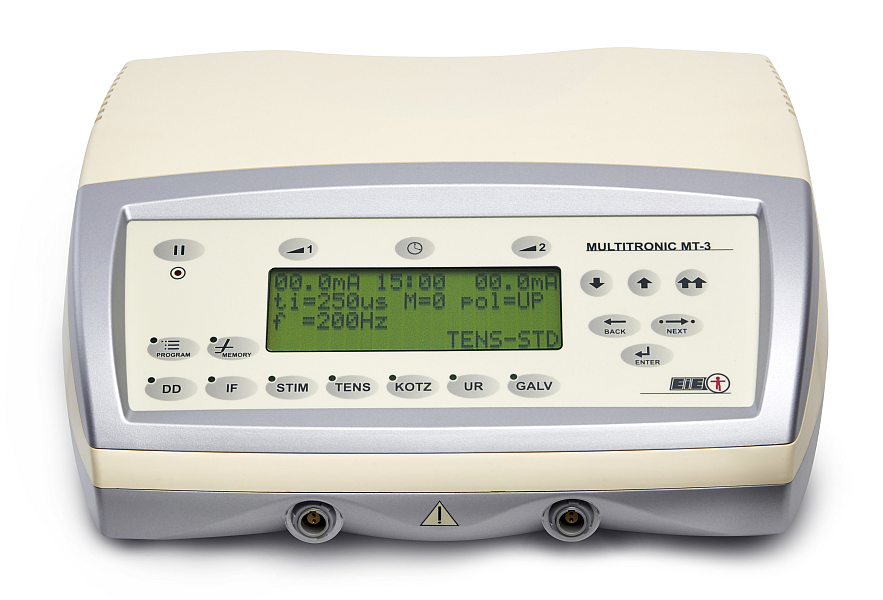

Multitronic MT-3 is a universal two-channel electrotherapy unit covering the full range of standard current forms.
Key features
- distinctive design with a customer-selected colour scheme
- highly practical Lemo connectors
- preset treatment parameters for common conditions (over 100 entries)
- individual adjustment of treatment parameters
- user-defined treatment settings (50 entries)
- programmable diadynamic current sequences
- electrogymnastics function with a wide adjustment range
- two treatment circuits (independent amplitude control)
- easy semi-automatic electrodiagnostics (i/t curve plotting, automatic calculation of the coefficients); the last test result stays in memory
- large LCD screen for easy reading of parameters
- open treatment circuit detection
- counters for treatment time and number of treatments
Standard equipment
- user manual
- complete set of electrotherapy accessories
- E-S 50 flat silicone electrode with P-50 viscose pad (4 pcs)
- E-A 75 flat aluminium electrode with P-75 viscose pad (4 pcs)
- K-2L electrode connection cable (2 pcs)
- O-R1 strap, 50 x 500 mm (2 pcs)
- O-R2 strap, 50 x 800 mm (2 pcs)
- mains cable
- fuse T-0.315AL, 250 V (1 pc)
Optional equipment
- electrotherapy accessories
- carrying bag
- trolleys for units and applicators
Current forms
- DIADYNAMIC — mean current for DF: 0-30 mA, for MF: 0-15 mA
- INTERFERENTIAL — RMS current: 0-60 mA, frequency: 1-200 Hz
- STIMULATION — current amplitude: 0-100 mA, pulse amplitude (tonolysis): 0-100 mA, pulse width: 5-990 ms, pause time: 100-4000 ms, delay time (tonolysis): 5-150 ms
- ELECTROGYMNASTICS — pulse time: 0,5-8 s, pause time: 1-16 s, envelope: 0-100%
- TENS and HV — current amplitude: 0-100 mA, frequency: 1-200 Hz, pulse time: 50-250 µs
- KOTZ — current amplitude: 0-100 mA
- TRÄBERT — current amplitude: 0-100 mA
- GALVANIC — current: 0-50 mA
Technical data
- Power supply: 230 V / 50 Hz / 70 VA
- Unit weight: 3 kg
The unit ships with a green housing as standard. A different colour must be specified when ordering; grey-silver is available at no extra charge.
