Sonic 30 NT

SKU: 10700 Categories: ,

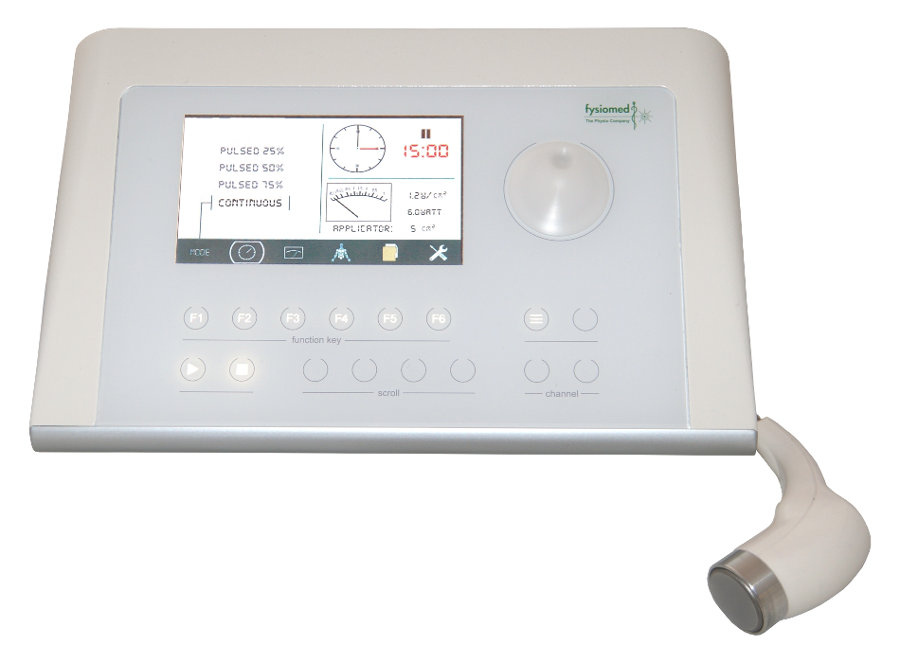

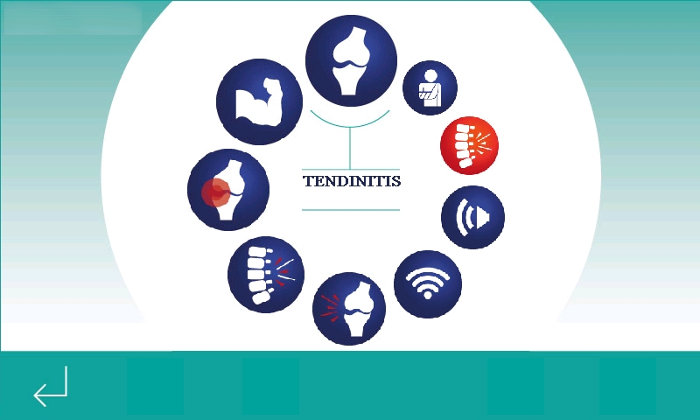

Extremely precise and modern ultrasound device. The US head is equipped with a high-quality quartz which guarantees stable frequency and power at exactly 1 MHz. The oscillation range allows to generate high power without distortion, even in continuous mode. Elegant design, intuitive color screen and extremely easy operation. Preset pathologies and selection menu via the proposed parameters. Memory slots for self-adapted programs with identification for later use.

Description

Contact control (only available on US head 1 MHz – 5 cm²)

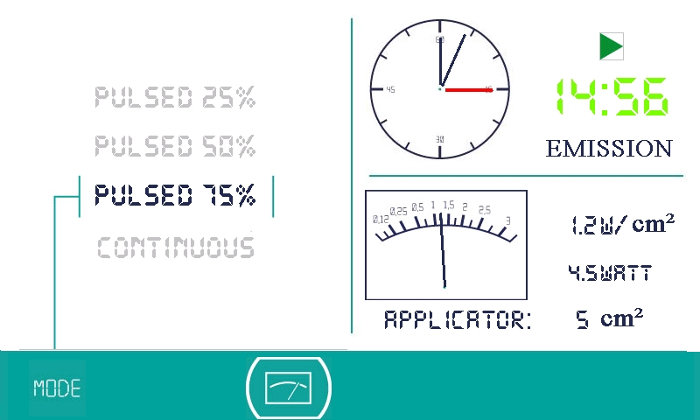

Pulsed and continuous emission, very stable, even at high values.

Anatomic formed head in synthetic material with a surface of 5 cm² on 1 MHz, conform to safety norms on lateral radiation.

Can be connected to an interferential or medium frequency unit for combination therapy.



Technical features
  • mains: 230V ± 10% – 50/60 Hz
  • consumed power: 60 VA
  • frequency: 1 MHz – 3 MHz
  • surface of head: 5 cm²
  • effective intensity: 3 Watts/cm²
  • output power: 15 Watts max.
  • US emission: continuous, pulsed 1/10 and 1/5
  • pulse frequency: 100 Hz
  • digital timer: 30 minutes – settings pro minute
  • weight: 5,5 kg
  • dimensions: 350 x 250 x 120 mm
  • safety class: class I type BF according to IEC 601-1
  • marking: CE 1639



Additional information

Equipment class

Capital equipment
