Fisiotek 3000 GS – knee and hip CPM device

Description

Description

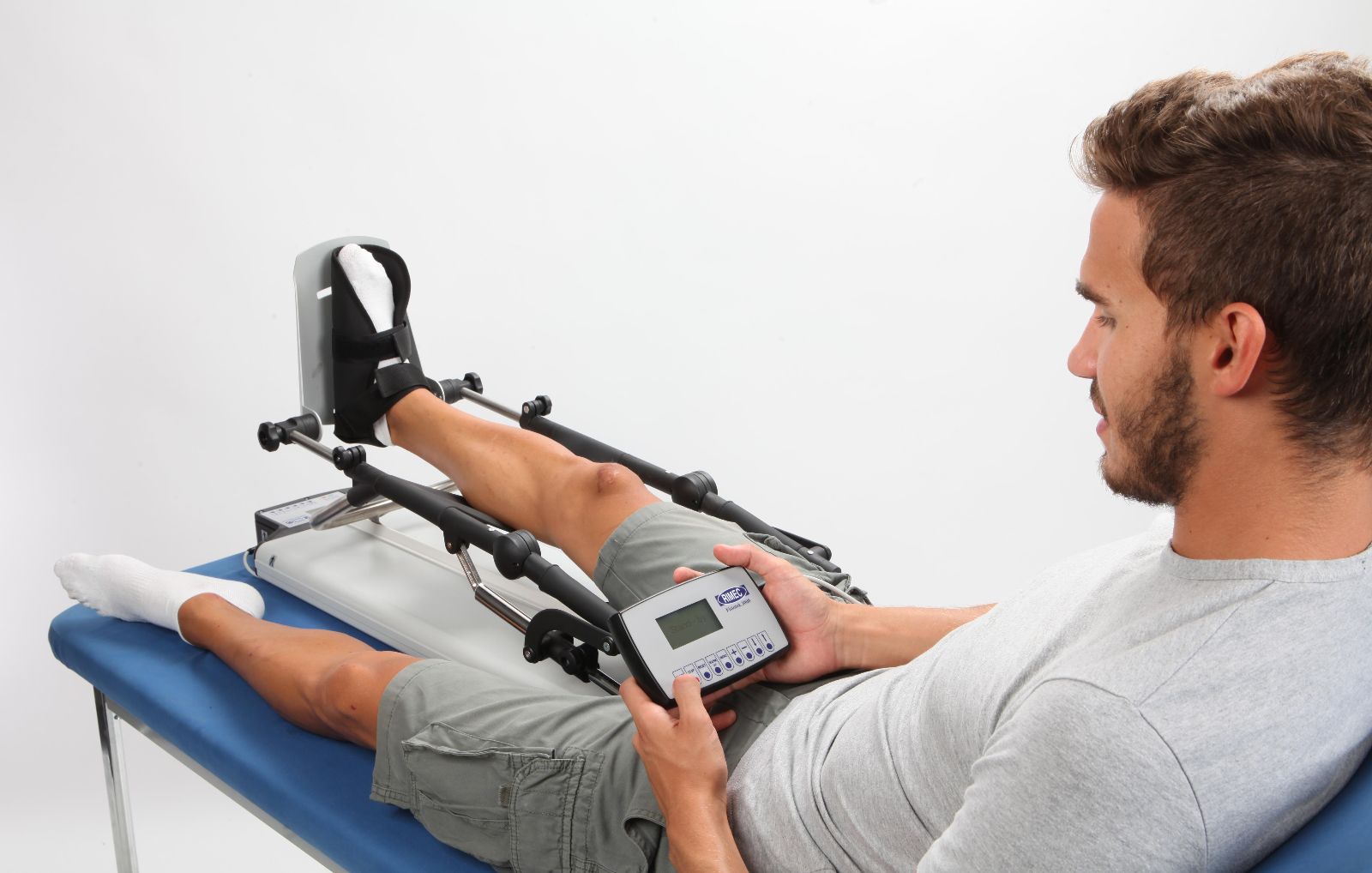

Fisiotek 3000 GS mobilises the knee and hip by flexion-extension. Positioning is based on the length of the patient’s femur; limbs with a femur length from 32 cm to 49 cm can be rehabilitated. At only 9,5 kg the device is easy to manoeuvre. The GS adds a memory card that stores the programmed parameters for each patient.

The device can be programmed from the control console or from the hand-held programmable keypad. Both show self-explanatory graphic symbols, and the programmable features let therapy be customised to different rehabilitation needs.

The hand-held keypad carries all the programming keys plus START and STOP, so the patient can take an active part in therapy where that is possible. The keypad and the remote-controlled START & STOP handset are interchangeable and use the same connector.

Engineering data

• Power supply: 85 ÷ 260 V ~ 50 ÷ 60 Hz
• Electrical safety: Class I B, standard EN 60601-1
• Electromagnetic compatibility: Group 1 Class B, standard EN 60601-1-2
• Classification according to Dir. EEC 93/42: Class IIa
• Weight: 9,5 kg

Programmable functions

• Knee flexion-extension range: -10° to 120°
• Hip movement range: 7° to 115°
• Flexion speed
• Force
• Working time
• Automatic flexion and extension angle increase, with limits
• Pause in flexion and in extension
• Warm-up
• Flexion and extension limit repetitions
• Adjustable foot support for comfortable ankle positioning
• Memory card: stores the programmed parameters for each patient and keeps track of progress

Accessories

• Hand-held programmable keypad
• Remote-controlled START & STOP
• Trolley for internal use
• Memory card

When should it be used

• Surgical repair of the knee’s extensor mechanism
• Meniscectomies and meniscal sutures
• Surgical treatment of fractures and pseudoarthrosis
• Osteotomy
• Artificial hip and knee
• Arthrolysis

Why choose it

Fisiotek 3000 restores joint movement in both surgically and non-surgically treated conditions, so it suits a wide range of patients. The frame uses aluminium and stainless steel for dependability over time, and every model in the 3000 line has a Warm Up feature that warms the joint before therapy proper begins.
