Fisiotek – 25005

Description

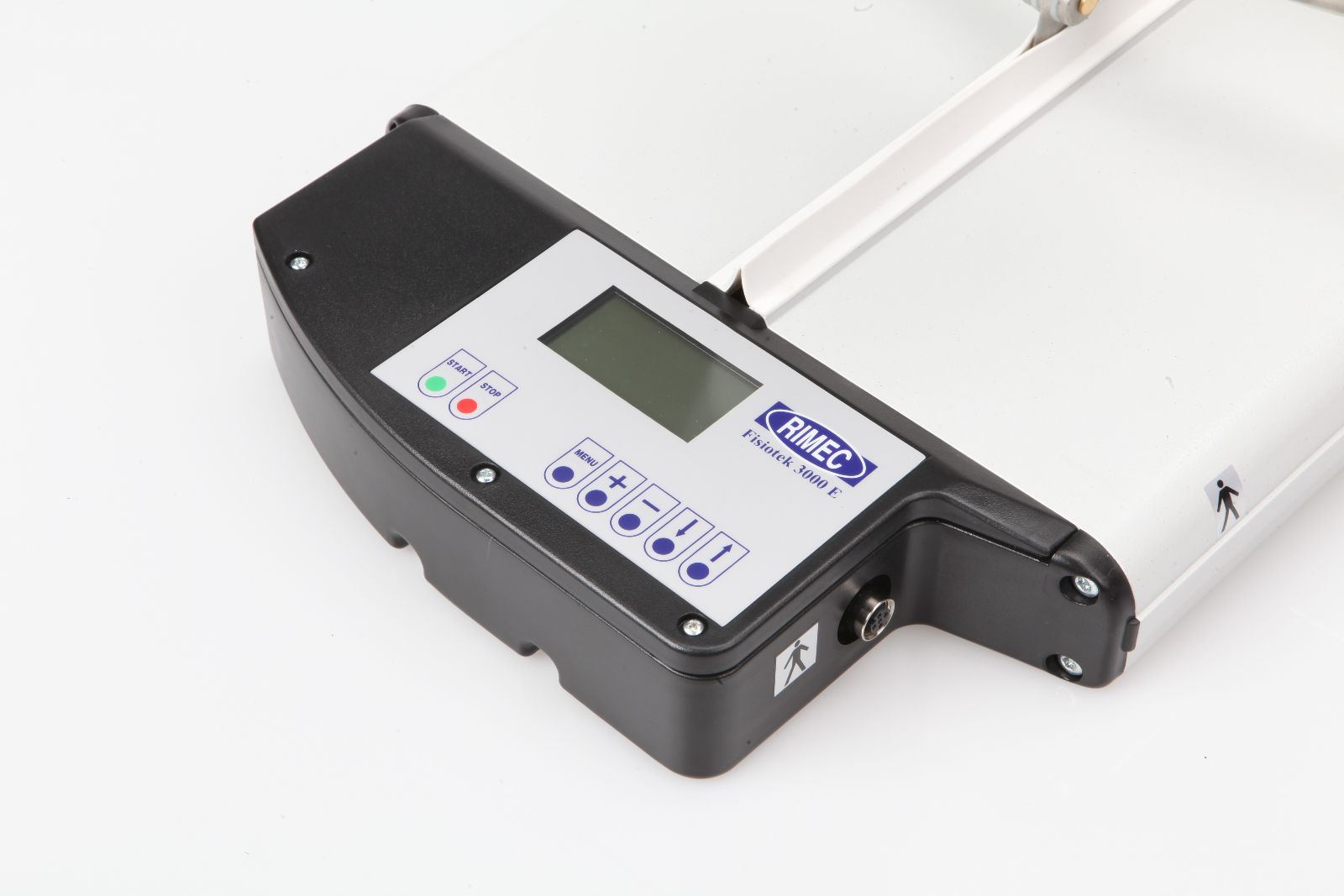

microprocessor controlled unit for passive mobilisation of knee, hip and ankle – adjustable speed during flexion/extension, force and work time – automatic flexion and extension increase – pauze during flexion and extension – digital control panel – built-in 24V alimentation – emergency stop

Technical Features

• range knee movement: 0° – 110°
• range hip movement: 10° – 70°
• range ankle movement: 20° – -40°
• speed: 0,8°/s – 4,6°/s
• force: 0 – 40 kg
• mains supply: 85/260V 50/60Hz
• safety class: class 1B standard EN 60601-2
• CE directive 93/42: class IIa
• weight: 14 kg
