Characteristics
- Big, color graphic screen (4,3”) with touch panel.
- User-friendly operation by touch screen and buttons.
- Double-frequency probes:
1MHz and 3,3MHz in 5cm2 or 1cm2 size
- Continuous and pulsed work mode
- Two ergonomic handle versions
- Water-resistant probes
- Regulation of impulse duty factor is smooth or discreet
- Sound and visual signal of contact of the probe with patient
- Ready to use programs for typical illnesses
- User’s own programs – with easy to use screen keyboard
- Counters of number and time of treatments
Application
Ultrasound therapy may be used for treatment of:
- degenerative joint diseases
- pain syndromes
- post-traumatic states, fractures, contusions
- ulceration, scars
- contracture
- inflammatory states
- rheumatic diseases
- neuralgia, neuritis
- selected internal diseases
Accessories
Standard
- therapy gel
- User’s manual
- spare fuse
Optional

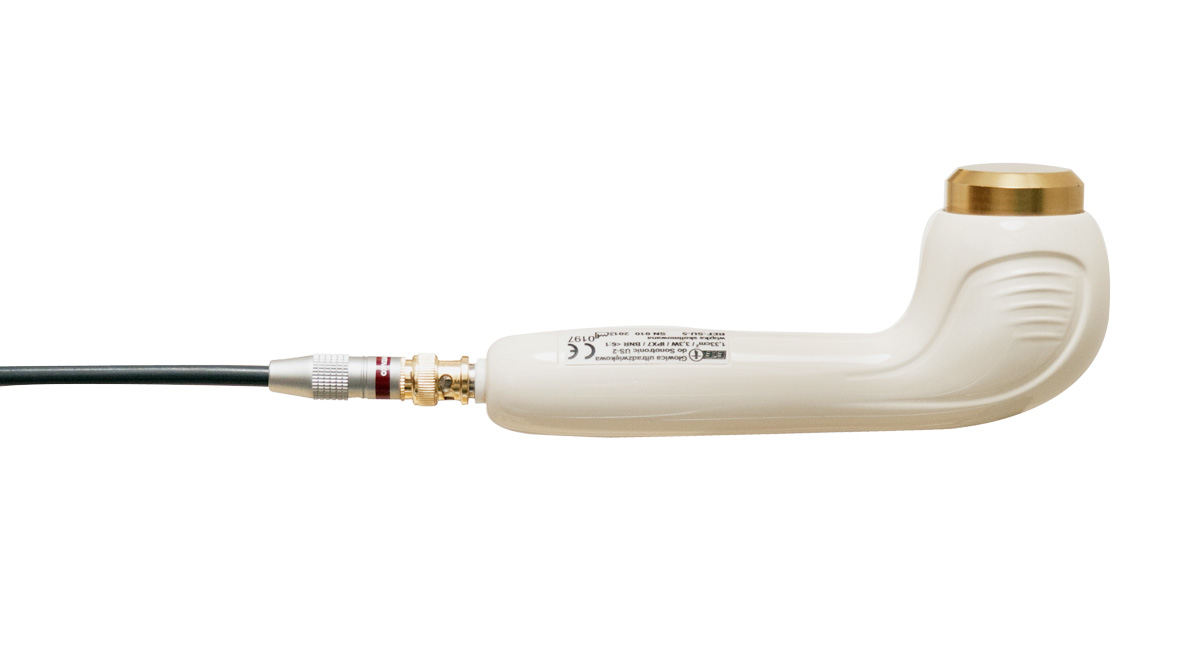

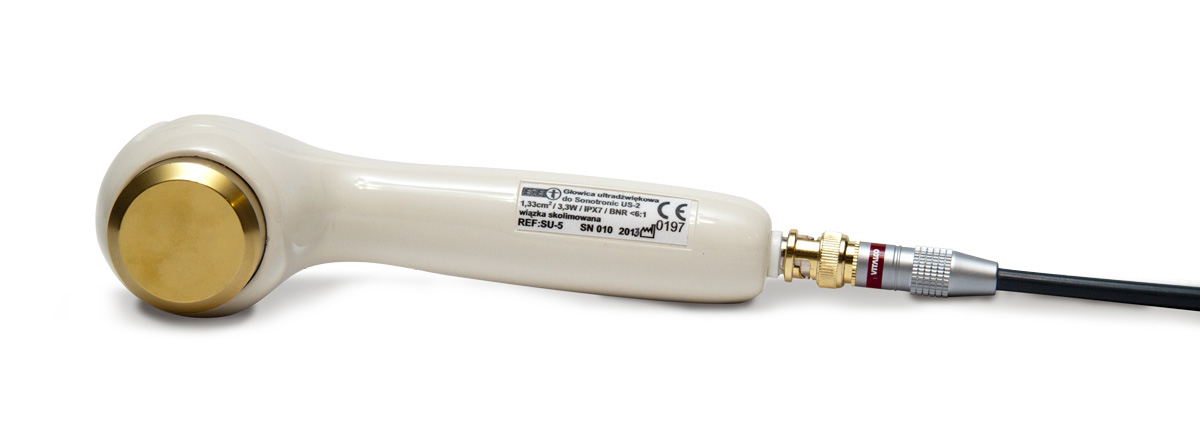

- ultrasound heads:
- SU-5: 5cm2 area; 1MHz and 3,3MHz frequency
- SU-1: 1,33cm2 area; 1MHz and 3,3MHz frequency
- transportation bag
Technical data
| Ultrasound parameters |
| continuous power |
2,5W/cm2 |
| peak pulse power |
3W/cm2 |
| radiation frequency |
1MHz or 3,3MHz |
| pulse frequency |
10-150Hz |
| duty factor |
|
| smooth: |
5 – 100%, one step 5% |
| discreet: |
6,25%; 12,5%; 25%; 50% |
| Other parameters |
|
| treatment clock |
1 sec – 30 min |
| power supply |
1-phase net ~230V 10%, 50Hz, 50VA |
| electric safety class |
I type B |
| ambient temperature |
10°C – 40°C |
| relative humidity |
do 85% |
| dimensions |
335 x 270 x 125 mm |
| weight (of control unit) |
2.5 kg |
|
