Description

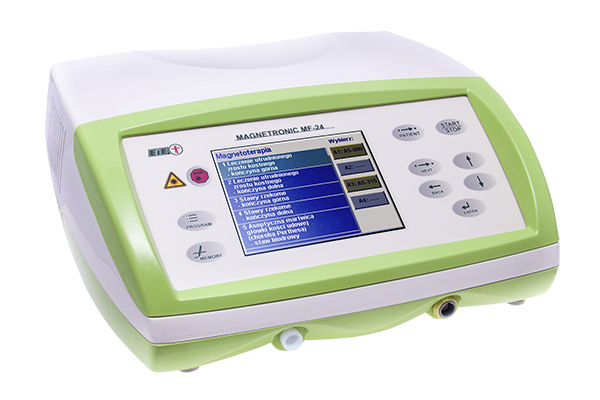

Magnetronic MF-24 combines multichannel magnetotherapy with an independent laser therapy channel — five treatment timers in total.
Each applicator has its own treatment timer and can be switched on independently of the others. This allows 4 magnetotherapy treatments running on independent timers (2 per channel) plus 1 laser therapy treatment. Two independent magnetotherapy channels each take two applicators and carry their own parameter settings, and the separate laser channel drives a laser probe.
Design
- modern control unit design
- distinctive applicator design
- colour scheme can be matched to requirements (optional)
Ease of use
- preset treatment programmes for common conditions
- custom programmes — the therapist can save their own treatment programmes
- every treatment parameter adjustable individually
- large 5,7” colour graphic touch screen
- operated by buttons or touch screen
Additional advantages
- wide magnetic field frequency range – 1 to 100 Hz
- MX1 and MX2 programmes – automatic modulation change
- automatic applicator detection – the coded applicator cable lets the unit recognise which applicator is connected
- laser power adjustable over a wide range, 10 to 1440 mW
- low unit weight
Standard equipment
- user manual
- mains cable
- control magnet
- fuse T-1,6L, 250 V
- warning labels
Optional equipment
- laser probes
- protective goggles for laser treatment
- coil applicators in various sizes, flat applicators, couch for the large applicator, trolleys for the applicators and the unit
Technical data
- Magnetic field frequency: 1 – 100 Hz
- Magnetic flux density: 0 – 20 mT
- Pulse / pause time: 0,5 – 8 s
- Power supply: 230 V / 50 Hz / 400 W
- Unit weight: 6,2 kg
- Control unit size: 142 x 364 x 335 mm (H x W x D)
