Description

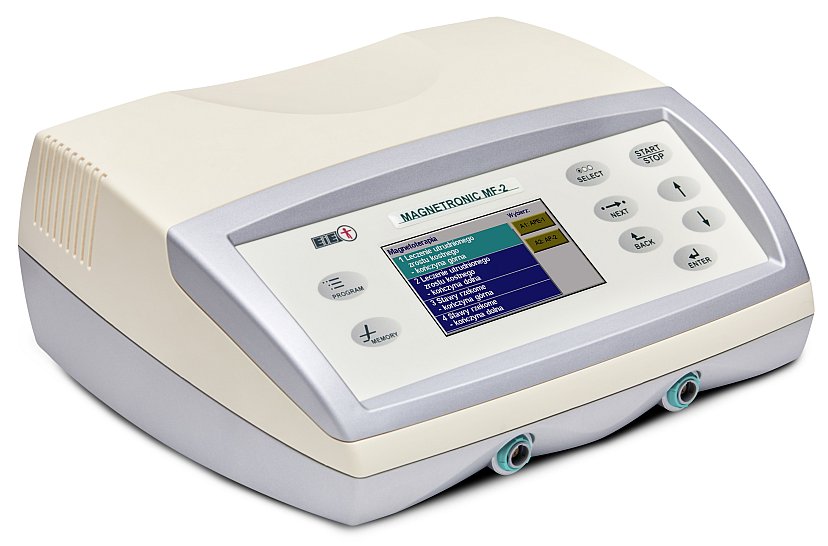

Magnetronic MF-2 is a two-channel magnetotherapy unit. The ergonomic build makes it usable as a portable device, for example on home visits.
It is an improved version of the MF-8: an extra treatment channel was added and the display replaced with a 4,3” colour graphic touch screen.
Key features
- can be used as a portable unit
- two treatment channels
- 4,3” colour graphic touch screen
- a choice of lightweight applicators
- specialised applicators for the head, small body areas and limbs
- stepless positioning of the AST-2 applicator around the head
- the AST-2 coils can be used detached from the stand
- very favourable price compared with larger units
Compatible magnetic applicators
- AST-2 stand applicator — allows stepless positioning around the head and penetrates small body areas with an alternating magnetic field
- APE-1 flexible flat applicator — its flexible construction suits smaller areas such as wrists and knees
- AS-204 coil applicator — convenient for treating limbs and considerably lighter than comparable applicators; 200 mm internal diameter. For stationary use we recommend pairing it with the S-200N mobile trolley
- AP-1 and AP-2 flat applicators — flat pad shape; also well suited to veterinary physiotherapy
Standard equipment
- user manual
- control magnet
- mains cable
- fuse T-0,315AL, 250 V (2 pcs)
Technical data
- Magnetic field waveforms: sine, square, triangle – unipolar and bipolar
- MX1 – modulation waveform cycles through, frequency held constant
- MX2 – modulation waveform cycles through together with the frequency
- Magnetic field frequency: 2 – 150 Hz
- Magnetic flux density: 0 – 8 mT
- Pulse / pause time: 0,5 – 8 s
- Power supply: 230 V / 50 Hz / 70 VA
- Unit weight: 3 kg
The unit ships with a green housing as standard. A different colour must be specified when ordering; grey-silver is available at no extra charge.
