Description

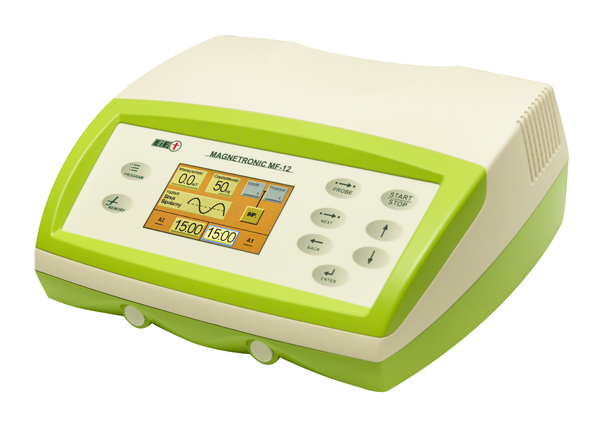

Magnetronic MF-12 runs two magnetotherapy treatments at the same time on independent timers. Each applicator has its own treatment clock and can be switched on independently of the other, so two patients can be treated on the same parameters without waiting for one another.
Design
- modern control unit design
- distinctive applicator design
- colour scheme can be matched to requirements (optional)
Ease of use
- preset treatment programmes for common conditions
- custom programmes — the therapist can save their own treatment programmes
- every treatment parameter adjustable individually
- large 4,3” colour graphic touch screen
- operated by buttons or touch screen
Additional advantages
- wide magnetic field frequency range – 1 to 100 Hz
- MX1 and MX2 programmes – automatic modulation change
- automatic applicator detection – the coded applicator cable lets the unit recognise which applicator is connected
- low unit weight
Technical data
- Magnetic field frequency: 1 – 100 Hz
- Magnetic flux density: 0 – 20 mT
- Pulse / pause time: 0,5 – 8 s
- Power supply: 230 V / 50 Hz / 200 W
- Unit weight: 4,7 kg
- Control unit size: 335 x 270 x 125 mm (W x D x H)
- Magnetic field waveforms: sine, square, triangle – unipolar and bipolar
- MX1 – waveform cycles through, frequency held constant
- MX2 – waveform cycles through together with the frequency
Equipment
- Optional: coil applicators in various sizes, flat applicators, couch for the large applicator, trolleys for the applicators and the unit
The unit ships with a green housing as standard. A different colour must be specified when ordering; grey-silver is available at no extra charge.
