Multistim HT – electrotherapy device – 20600

SKU: E20600 Categories: ,

Description

[et_pb_section bb_built=”1″][et_pb_row][et_pb_column type=”4_4″][et_pb_text]

The new Multistim HT is an advanced and complete universal electrotherapy device made for professional users, with 2 independent patient circuits allowing application of two different current forms at the same time.

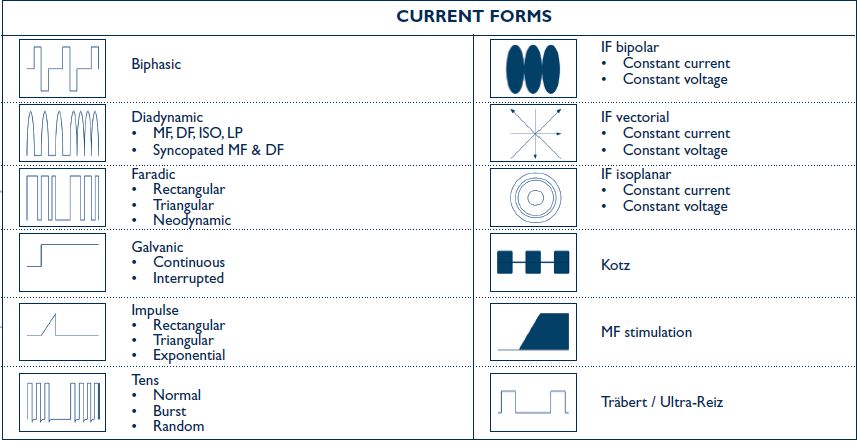

Low frequency currents:
biphasic, Tens, diadynamic (50-100Hz – CP, LP, 50 Hz and 100 Hz interrupted), rectangular, triangular, exponential, galvanic, galvanic interrupted, ionophoresis, faradic (triangular, rectangular, neodyn), Trabert, ultra-reiz

Medium frequency currents:
IF bipolar, IF quadripolar, IF isoplanar, IF vectorial, MF stimulation, isodynamic, Kotz

All the functions are visualized on a large color LCD. In addition to the usual and traditional keys and buttons, it is possible to adjust every parameter on the touchscreen.

The versatile Windows CE operating system ensures possible upgrading.

A wide range of preset protocols with body maps is available for setting most important therapies into the fields of physical therapy, sports medicine, orthopedics, vascular and aesthetic medicine.

After a pathology is chosen, the screen will show the body parts to be treated and the unit will suggest the parameter values to set.

Free memories for entering customized protocols.



Technical data
  • 2 channels
  • max. intensity:
    • low frequency currents: 76,5 mA (153 mAp)
    • medium frequency currents: 127 mA (153 mAp)
  • frequency from 2,5 to 20 kHz
  • color touchscreen 400×800 pixels
  • power supply: 115-230 V~ 50/60 Hz
  • consumed power: 80 VA
  • dimensions: 40 x 30 x 23 cm
  • safety class: class I type B according to IEC 601-1
  • Directive EEC 93/42: IIa
  • marking: CE 1639



Standard Accessories
37702 – chamex cover nr. 2
37115 – SCR flexible electrode nr. 2 – 4x
37726 – Fysiomed elasto-strap – 90 cm – 2x
37731 – black patient cable -2x
37732 – red patient cable – 2x
37736 – power cable
37737 – motor point electrode

Optional Accessories
20880 – trolley HT Line

[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section]
