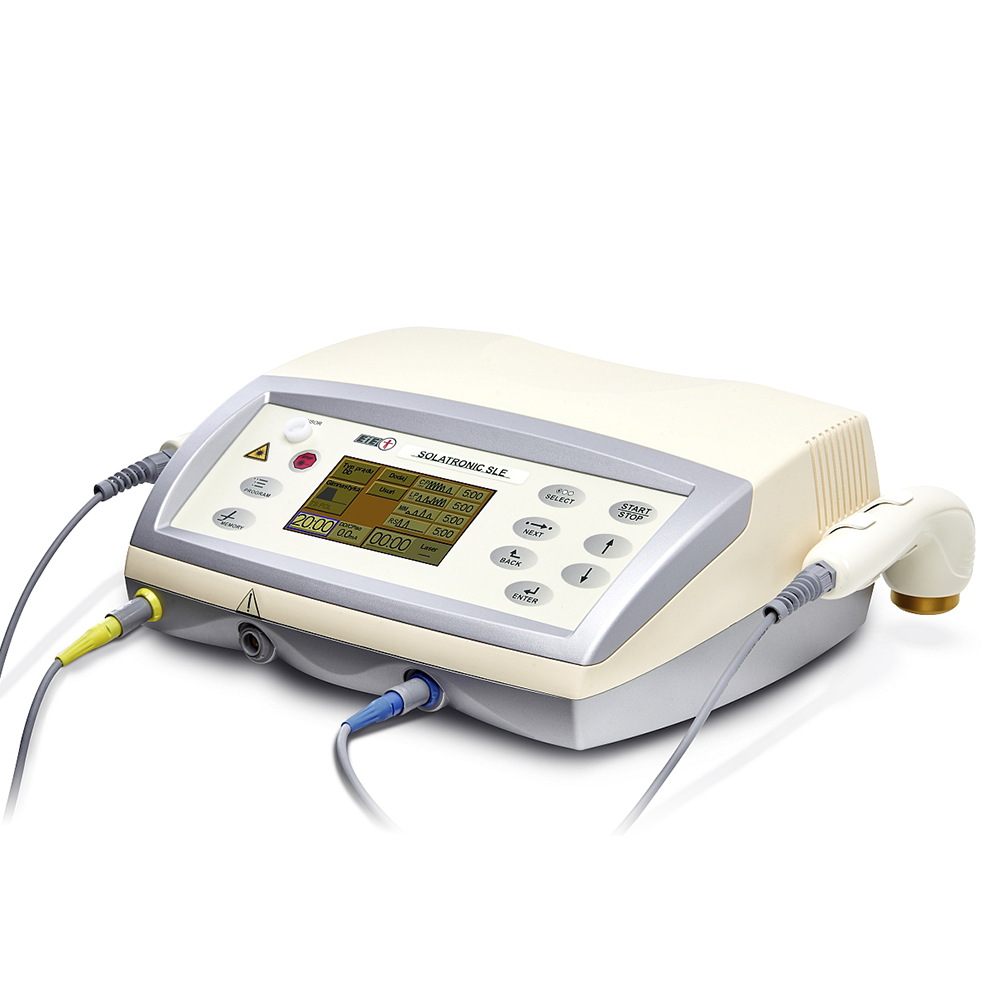

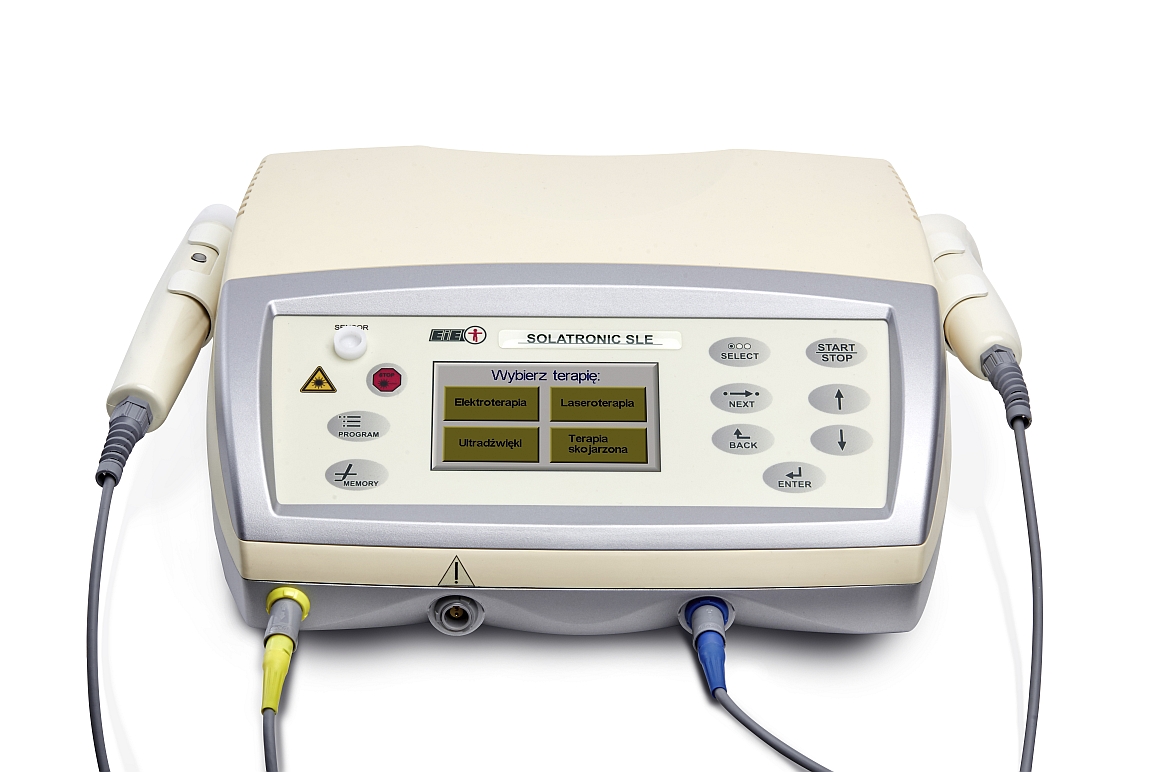

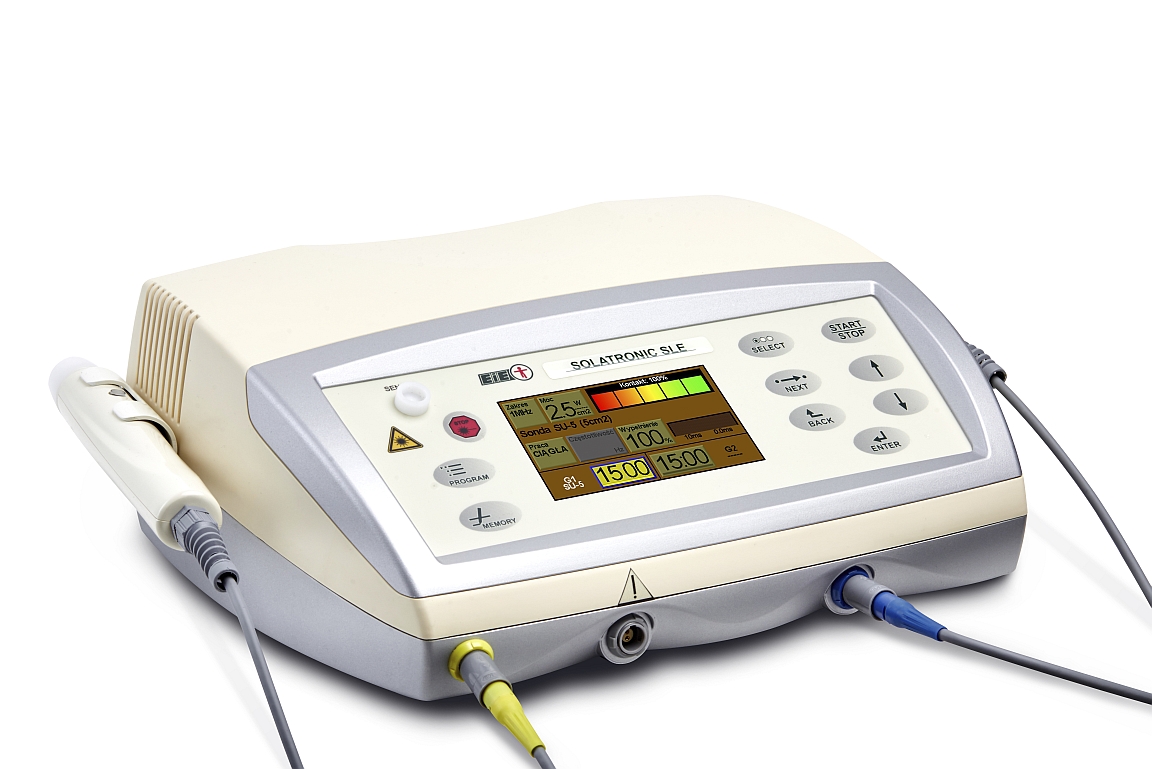

Triple therapy unit for electrotherapy, lasertherapy and ultrasound therapy
[et_pb_section bb_built=”1″][et_pb_row][et_pb_column type=”4_4″][et_pb_text _builder_version=”3.7.1″]
Standard
Optional
| Type of head | Parameters |
|---|---|
| SU-1 | 1,33 cm2 / 1MHz and 3,3MHz |
| SU-5 | 5 cm2 / 1MHz and 3,3MHz |
| Type of probe | Parameters | Modes of work |
|---|---|---|
| S-1N – point IR | 50mW / 905nm | impulse – high power impulse (50W) |
| S-2N – point R | 40mW / 660nm | constant and modulated with average power regulation |
| S-3N – point IR | 400mW / 808nm | constant and modulated with average power regulation |
| SP-1 – cluster R | 360mW / 660nm | constant and modulated with average power regulation |
| SP-2 – cluster R & IR | 840mW / 660nm & 808nm | constant and modulated with average power regulation |
| SP-3 – cluster IR | 1440mW / 808nm | constant and modulated with average power regulation |
Ultrasound parameters
| continuous power | 2,5W/cm2 |
|---|---|
| peak pulse power | 3W/cm2 |
| radiation frequency | 1MHz or 3,3MHz |
| pulse frequency | 10-150Hz |
| duty factor | |
| smooth: | 5 – 100%, one step 5% |
| timer | 30sec – 30min |
Lasertherapy parameters
| class of laser | 3B |
|---|---|
| timer | 30sec – 30min |
Other parameters
| power supply | 1-phase net ~230V 10%, 50Hz, 70VA |
|---|---|
| electric safety class | I type BF |
| ambient temperature | 10°C – 40°C |
| relative humidity | do 85% |
| dimensions | 335 x 270 x 125 mm |
| weight (of control unit) | 3.5 kg |
Technical data of point probes
| Type of probe | S-1N | S-2N | S-3N |
|---|---|---|---|
| Wavelength | 905 nm | 660 nm | 808 nm |
| Pulse power | 50 W | 40 mW | 400 mW |
| Frequency | 5-5000Hz | 5-9999Hz | 5-9999Hz |
| Mean power | (0,1–50)mW | (1-40)mW | (1-400)mW |
| Pulse energy | 10 µJ | —- | —- |
| Width of pulse | 200ns | —- | —- |
Technical data of cluster probes
| Type of probe | SP-1 | SP-2 | SP-3 |
|---|---|---|---|
| Wavelength | 660 nm | 660 nm / 808 nm | 808 nm |
| Number of diodes | 9 | 5 / 4 | 9 |
| Single diode power | 40 mW | 40 mW / 160 mW | 160 mW |
| Total power | 360 mW | 840 mW | 1440 mW |
| Frequency | 5-9999Hz | 5-9999Hz | 5-9999Hz |
| Area of treatment | 50 cm2 | 50 cm2 | 50 cm2 |
