Description
Description

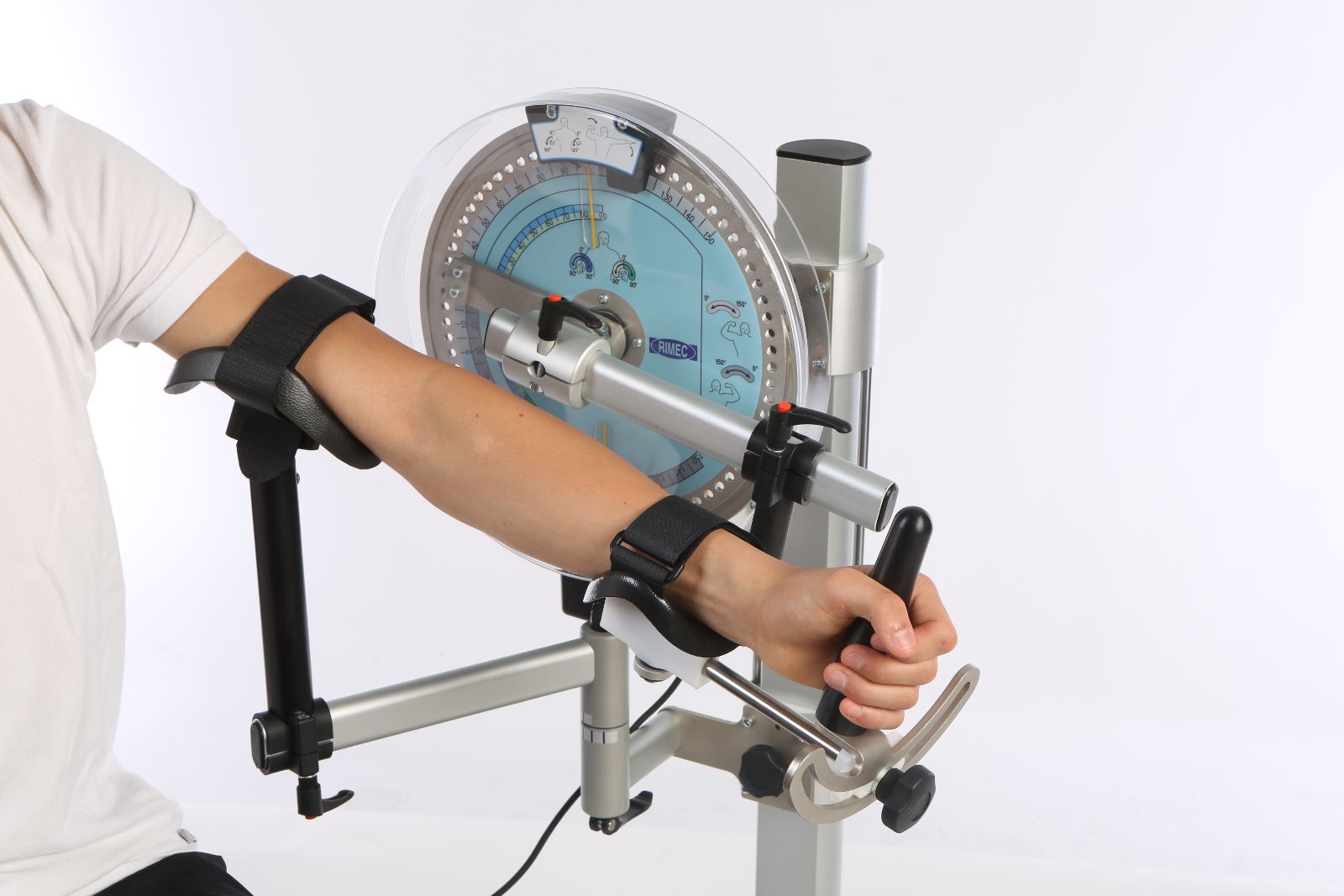

Fisiotek LT-G is an appliance that allows the elbow to undergo passive mobilization with different movements. This model is characterised by its compactness, simplicity, ease of programming and quality of movement.
Movements carried out for the elbow:
- Flexion-extension, range: 0° ÷ 150°
- Pronation-supination, range: 90° ÷ 0° ÷ 90°
Engineering data
- Input: 12V DC 50/60Hz – 4.8W
- Electric safety: Class II B, standard EN 60601-1
- Electromagnetic compatibility: Group 1 Class B, standard EN 60601-1-2
- Classification according to directive EEC 93/42: Class IIa
- Weight: 47 kg
- External power supply — input: 100-240 V AC, 50-60 Hz, 400 mA; output: 12V DC – 1.25A
- The instrument is compliant with the applicable basic requirements for safety, health and protection established by EU Directive 93/42.
Programmable functions
- Speed: min. 2°/sec. – max. 4,5°/sec.
- Range of movement: adjustment by electromechanical limit switch
Accessories
- Batteries and battery-charger kit
When should it be used
Whenever joint movement needs to be restored passively, in both surgical and non-surgical pathologies.
