Description
Description

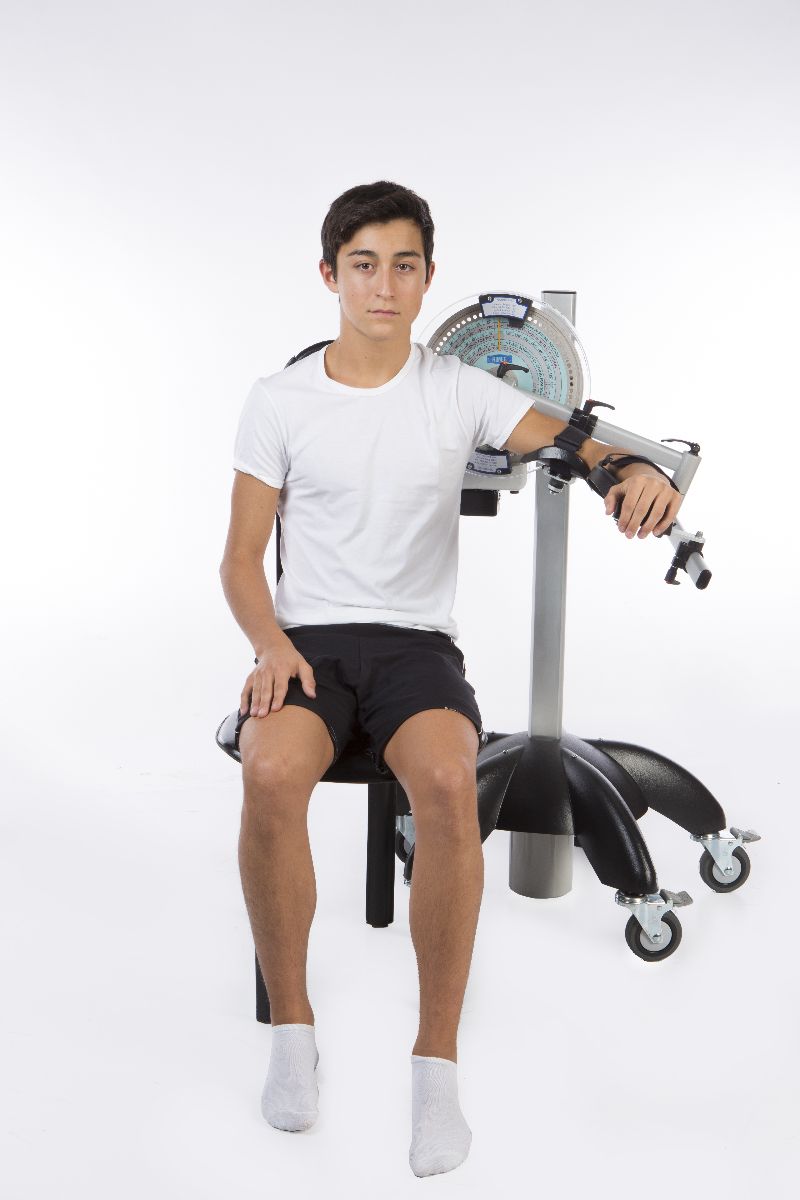

Fisiotek LT-5R is an appliance that allows the shoulder to undergo passive mobilization with different movements; it allows it to be used with the patient seated or supine. This model is characterised by its simplicity, ease of handling and quality of movement. Positioning of the patient is an easy and smooth operation.
Movements carried out for the shoulder:
- Elevation during flexion, range: 0° ÷ 180°
- Internal-external rotation, range: 90° ÷ 0° ÷ 90°
- Adduction-abduction: complete physiological range
Engineering data
- Input: 12V DC 50/60Hz – 4.8W
- Electric safety: Class II B, standard EN 60601-1
- Electromagnetic compatibility: Group 1 Class B, standard EN 60601-1-2
- Classification according to directive EEC 93/42: Class IIa
- Weight: 20 kg
- External power supply — input: 100-240 V AC, 50-60 Hz, 400 mA; output: 12V DC – 1.25A
- The instrument is compliant with the applicable basic requirements for safety, health and protection established by EU Directive 93/42.
Programmable functions
- Speed: min. 2°/sec. – max. 4°/sec.
- Range of movement: adjustment by electromechanical limit switch
Accessories
- Arm support for internal-external rotation movement
- Batteries and battery-charger kit
- Base light
When should it be used
Whenever joint movement needs to be restored passively, in both surgical and non-surgical pathologies.
Why choose it
- It can be used with the patient sitting or supine
- It is simple, manageable and easy to transport
- It is stable and accurate
- It allows the patient to be easily positioned
