Topaz – treatment table – 14.501.007

This rehabilitation table is designed for use in orthopedic, neurologic, rheumatic diseases treatment as well as in rehabilitation and cosmetics. Places of use are: hospitals, clinics, health centers and rehabilitation centers. The height of the table plate is electrically adjusted through the motor with the use of remote control.

Description

TECHNICAL DATA

Dimensions: 1900mm x 660mm
Maximum weight of patient: 150kg
Weight of table: 80kg
Table height adjustment: 490 – 1050mm
Headrest angle-adjustment: from -85° up to 35°

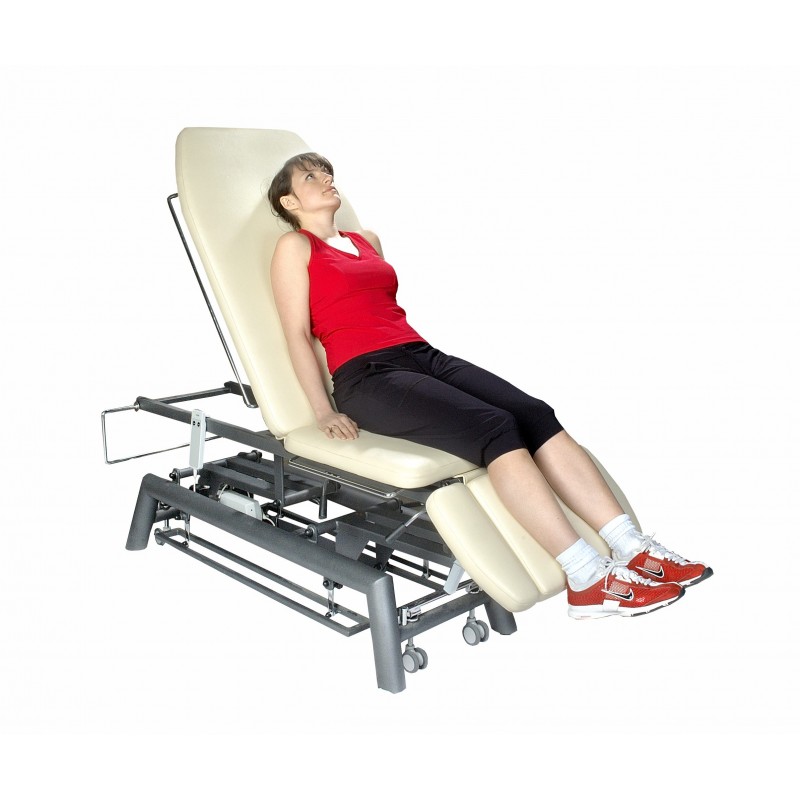

Leg rest angle adjustment to sitting position: up to 70°
Main part rest angle adjustment to Pivot position: up to 45°

Headrest:
– 1 section with face hole
– 3 sections (2 armrests) – optional

OPTIONAL EQUIPMENT

Fixing rods for stabilization belts [1] 14.501.017• Central wheels system for mobility (with holders) – 14.501.016
Paper roll holder – 14.501.018
Footswitch device – 14.501.015
3 sections headrest (2 armrests) – 14.501.013
Footbar switch for peripheral control – 14.501.022
Set of stabilization supports – 14.501.
